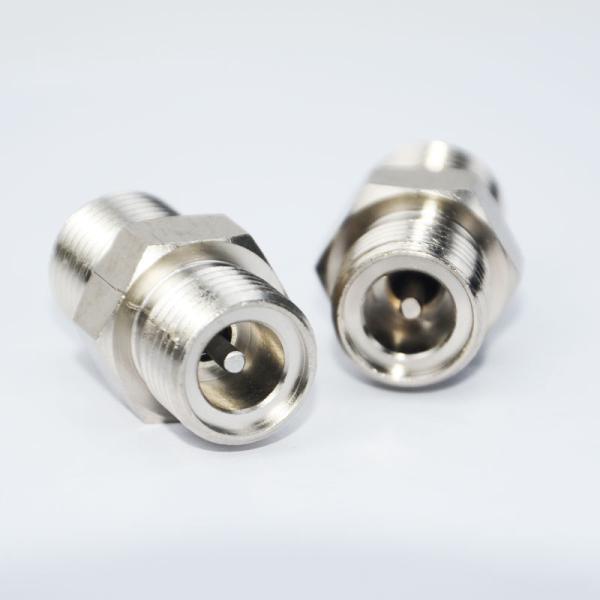

45 Steel Electroless Nickel Hermetic Seal Connectors 100A-300A Current Rating
Product Description:
Sintered Seal Terminals Our customizations offer.
We offer sintered seal terminals that are tailored to our customer's needs. We have the capability of creating these terminals with the following performance parameters:
- Material: 45 Steel
- Hi-Pot: 3000V; Leak current ≤ 0.5MA
- IR: 1000V; IR > 1000MΩ
- Leak Test: 4MPa N2 pressure; no leak
- Burst Test: 5MPa; no leak
- Operating Temperature Range: -70°C - 300°C
Features:
- Hermetic Sealing Connector Assemblies
- Hermetic Connector Systems Components
- Manufacturer: SSCore
- Material: 45 Steel
- Connector Style: Mounting Screw
- Insulation Material: Glass
- Current Rating: 100A - 300A
Technical Parameters:
The company's products are all environmentally friendly and use the electroless nickel plating method.
The coating thickness is between 3 to 5 microns, and it does not contain mercury, lead, cadmium and hexavalent chromium and other harmful substances. It is up to EU standards and it comes with SGS environmental testing report.
Furthermore, it is beneficial for the performance of electrical connections.
Applications:
Electronic connectors are an essential part of ultra-high power equipment; they provide sealing, insulation and safety measures for the components that are in contact with high voltage power. Their lightweight and durable properties make them reliable and secure, as well as ensuring power is transmitted effectively. Furthermore, electronic connectors are advantageous in terms of communication when it comes to electrical devices. Thanks to their design, the current can be monitored and controlled without any form of interruption; because of this, they are widely used in industries such as military and aerospace.
Customization:
Hermetic Seal Connectors
SSCore is an experienced manufacturer and supplier of Hermetic Seal Connectors. Manufactured using 45 Steel, our hermetic connector systems can be used in extreme temperature ranges of -70°C to +300°C. Our hermetic connector systems come with the current rating of 100A to 300A, and mounting screws for easy installation.
- Brand Name: SSCore
- Place of Origin: ShenZheng
- Minimum Order Quantity: 5 pcs
- Price: 60-300$
- Packaging Details: Cato packing
- Delivery Time: 7 - 14 work days
- Payment Terms: L/C, D/A, T/T, D/P
- Supply Ability: 50w pieces a month
- Operating Temperature: -70°C To +300°C
- Material: 45 Steel
- Current Rating: 100A - 300A
- Connector Style: Mounting Screw
- Manufacturer: SSCore
If you are looking for a reliable hermetic connector system, then SSCore is your ideal choice. Our high-quality hermetic connector systems are designed to meet your needs and provide a reliable connection. Contact us today for more information and to place your order.
Support and Services:
Hermetic Seal Connectors Technical Support and Service
We provide technical support and service for our Hermetic Seal Connectors. Our technical support team is available to answer any inquiries regarding the product and offer advice on installation and troubleshooting. We also provide free software updates and upgrades to ensure optimal performance.
Our customer service team is available to assist with any other needs you may have. We are committed to providing the highest level of customer satisfaction and will do our best to ensure your complete satisfaction.
